Central Opening Safety Light Guard 3D Protection WECO 957MD 3D 154 Beams

Brand Name : WECO

Model Number : WECO-957MD-3D

Certification : CE CSA

Place of Origin : CHINA

MOQ : 5PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1200000SETS/Year

Delivery Time : 15Workdays

Packaging Details : Each set packed by carton tube, 5 tubes in a bundle

Function : 3D protection

Application : Residential Elevator / Shopping Mall

Voltage : AC220

Size : 2000*31*12mm

Original : China

Brand : WECO

Contact Now

Central Opening Safety Light Guard 3D Protection WECO 957MD 3D 154 Beams

Ningbo WECO Optoelectronics CO., LTD. developed to produce WECO Brand elevator door detector since 1998. WECO-957MD-3D is an upgrade model compare to parted 3D sensor, which is applied to high-end occasions.

Advantages
3D protection, detected to the stereoscopic area
Easy Installation, same as common products.

Application
All type elevator

Features

Technical FeatureWECO-917MD-3DWECO-957MD-3D
Number of Infra Red Diodes32 Diodes
Response TimeRelay output61ms
Transistor output37ms
Sacanning Beams154-94 beams
Detecting Height20~1840mm
2D detecting Range0~4m
Light Immunity100000Luxsunlightproof
Operation Temperature-20℃-+65℃
Protection LevelIP54
EN12015, EN12016General Circuit Level
Voice Reminderafter continuous detection for 15s, buzzer ON.
LED Interpretation1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.
2. Yellow LED in receiver on and Red LED in receiver off without blocking.



Installation dimension

Central Opening Safety Light Guard 3D Protection WECO 957MD 3D 154 Beams

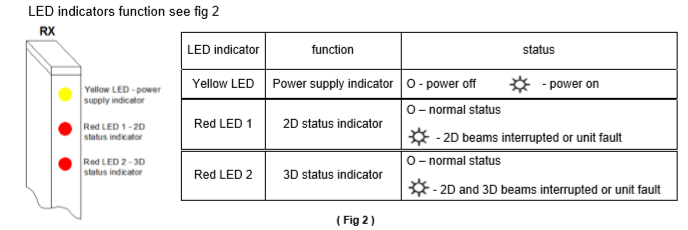

LED Indicator Function
Central Opening Safety Light Guard 3D Protection WECO 957MD 3D 154 Beams


Installation
1. The door detector should be installed on both side of car door, as close to the forward edge of the car door in order to prevent the infrared being obstructed by the landing door and shoot out with the angel of 45°.
2. During the installation make sure the two sides are in a same hotizontal up and down. Power ON after installation.
3. Ensure there are no obstalces in front of the landing door, make a round closing and opening several times by manual operating and observe if the process goes smoothly.
4. Keep the elevator in the same leveling position. Do 3D self- learning configuration. Two sensitive range for your choices.
5. Factory reset: ( only do this step if you want to back to factory setting, otherwise go to step 6). Power off the dorr detector, turn the switch 4 to ON, then power on the door detector, the device is entering the factory reset, wait 1s when hearing the buzzer beep, turn the switch 4 to OFF, door detector back to normal state.
6. Normal running stute.
Keep all switches to OFF, let the door detector back to normal state.

Shipping

1) By Express (3-7 working days), suitable for Small Quantity.

2) By Sea (15-30 days), suitable for regular Mass Production.

3) By Air (4-5 days), from Airport to Airport, suitable for Urgent orders.

Central Opening Safety Light Guard 3D Protection WECO 957MD 3D 154 Beams
